Cocoon ECQ

Singe Layer Structure and glazing

Project Name

Al Mansour Gate

Use

Commercial Complex

Build Up Area

104997 Mtr2

Levels

2B+GF+M+(4×4)

Unique Members

8096 nos.

Unique Nodes

2728 nos.

Unique Panels

5028 nos.
HEXANOM STRUCTURE 5041 Mtr2

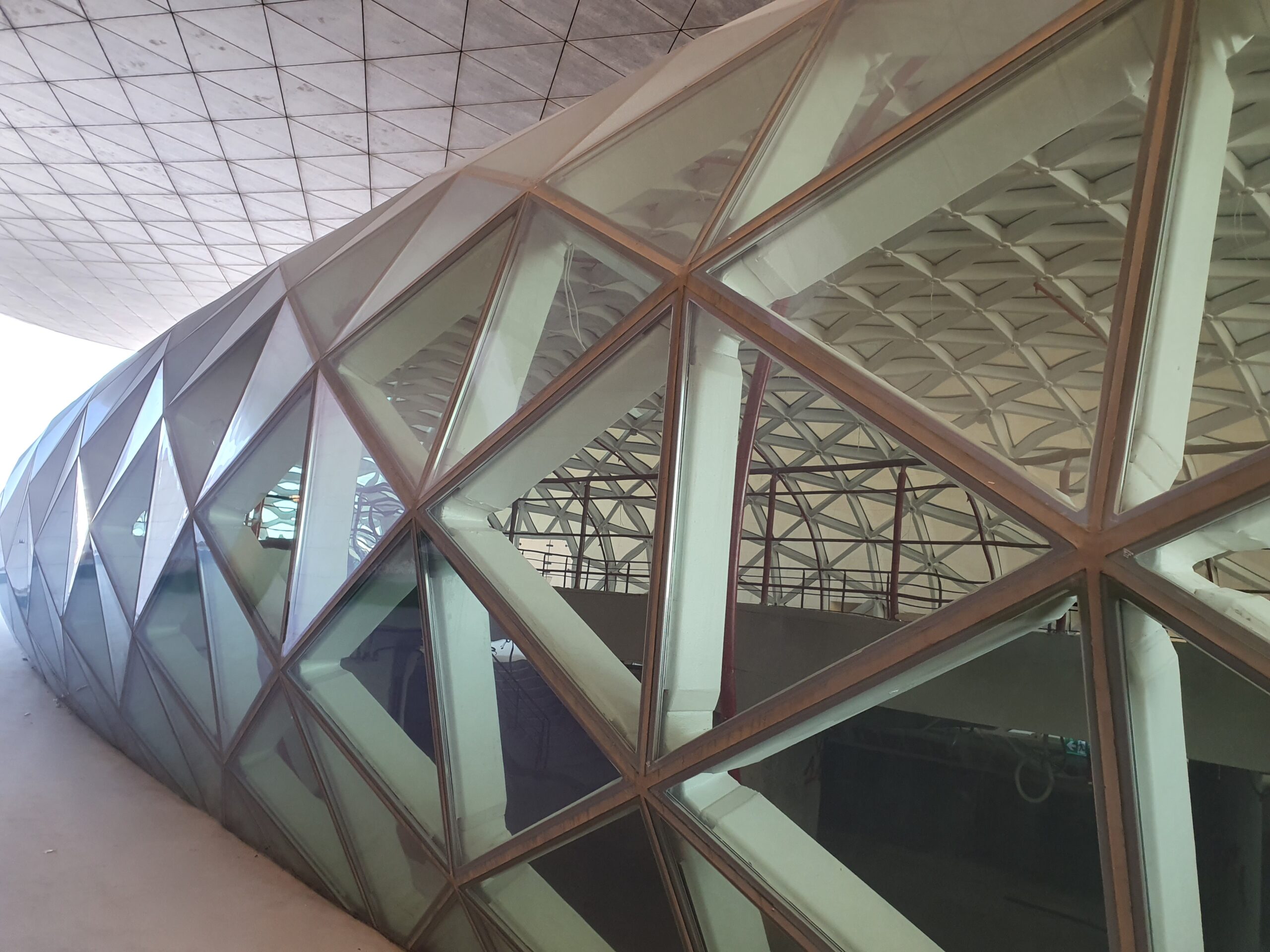

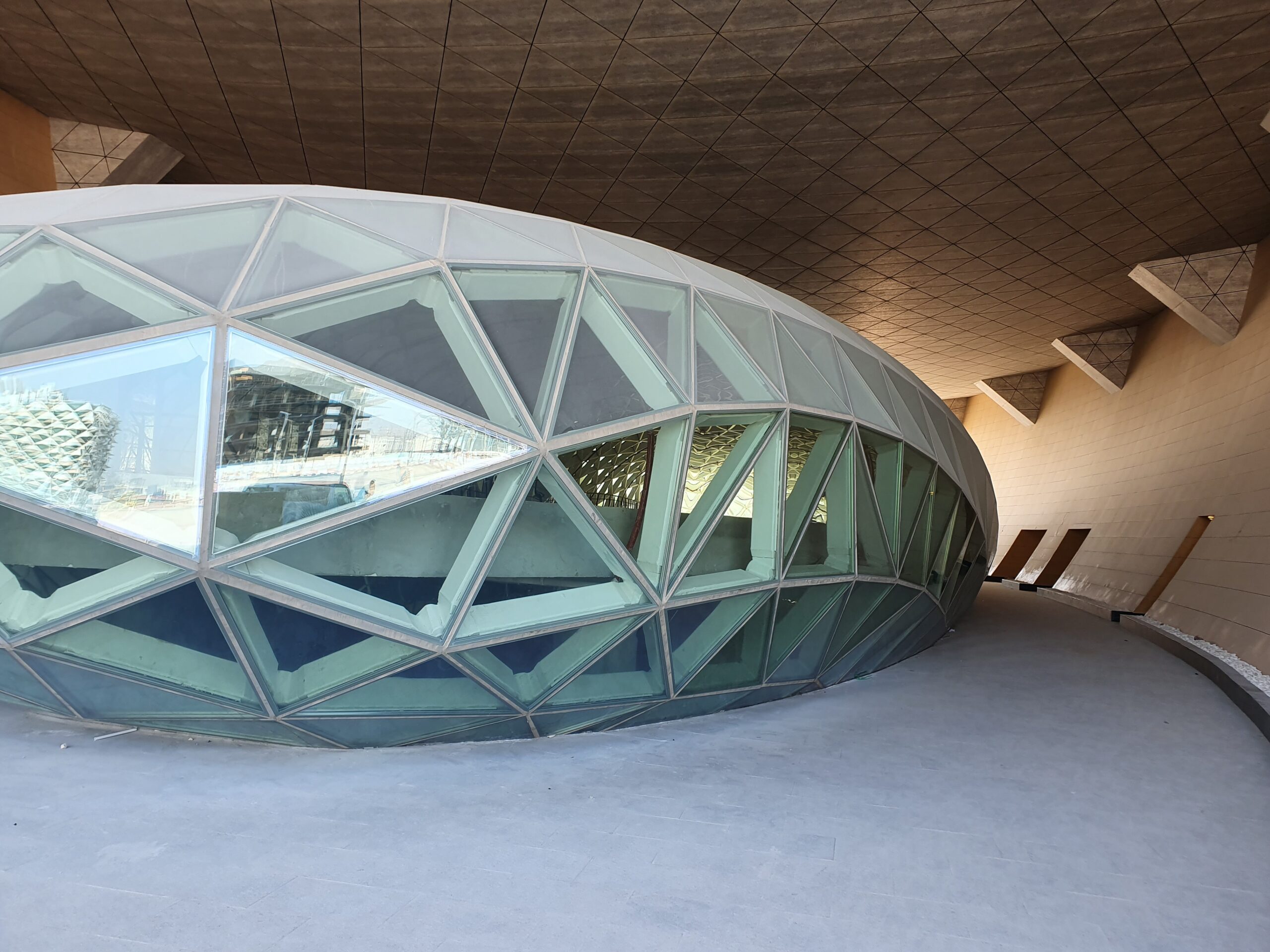

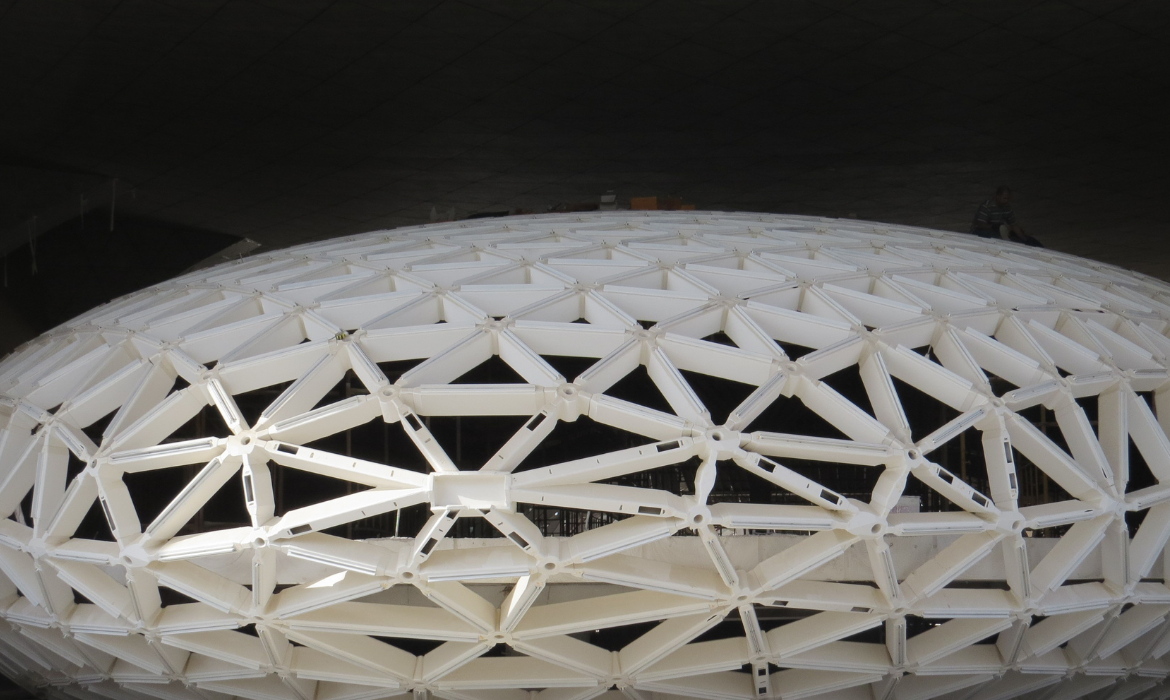

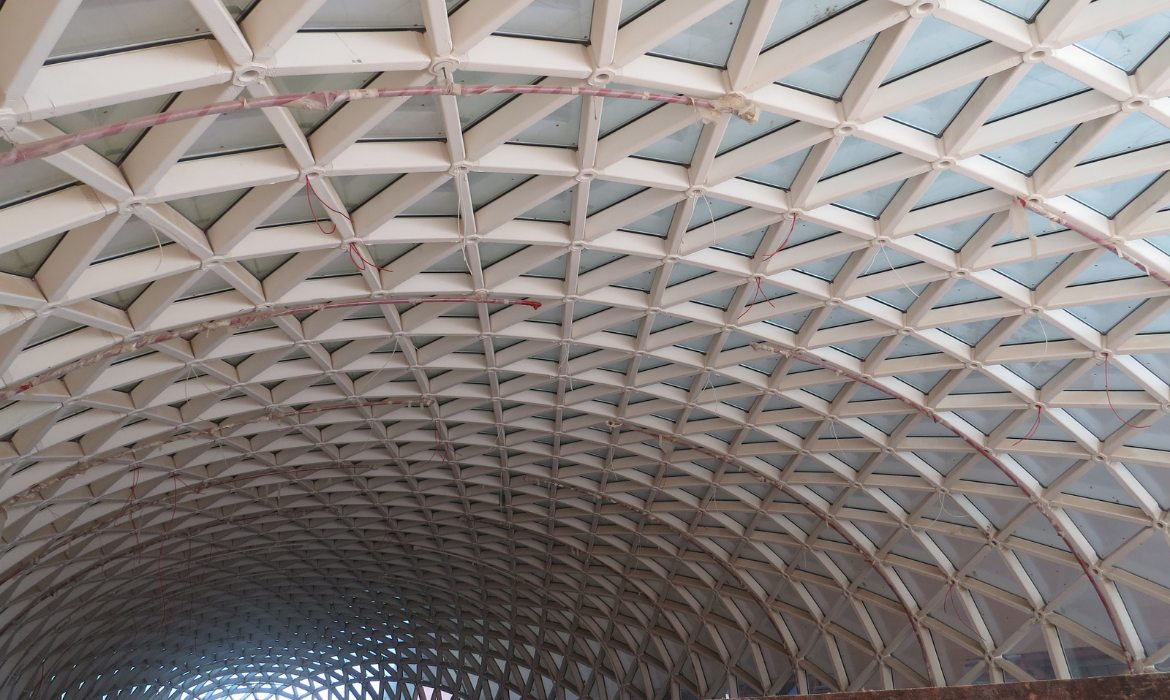

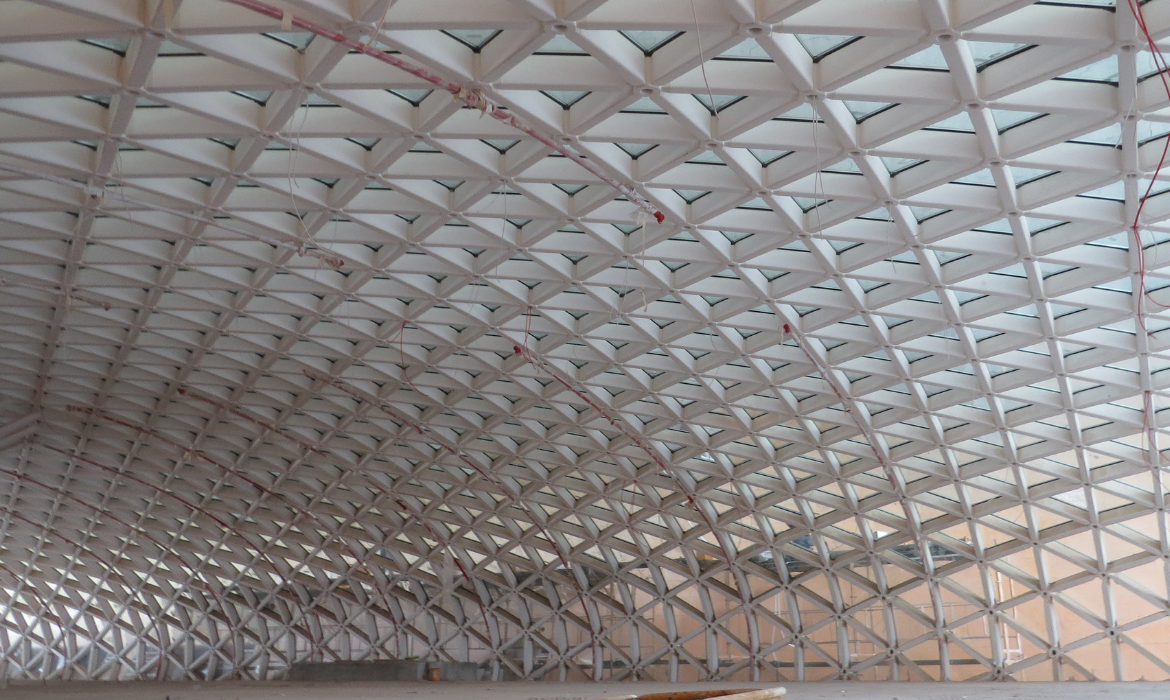

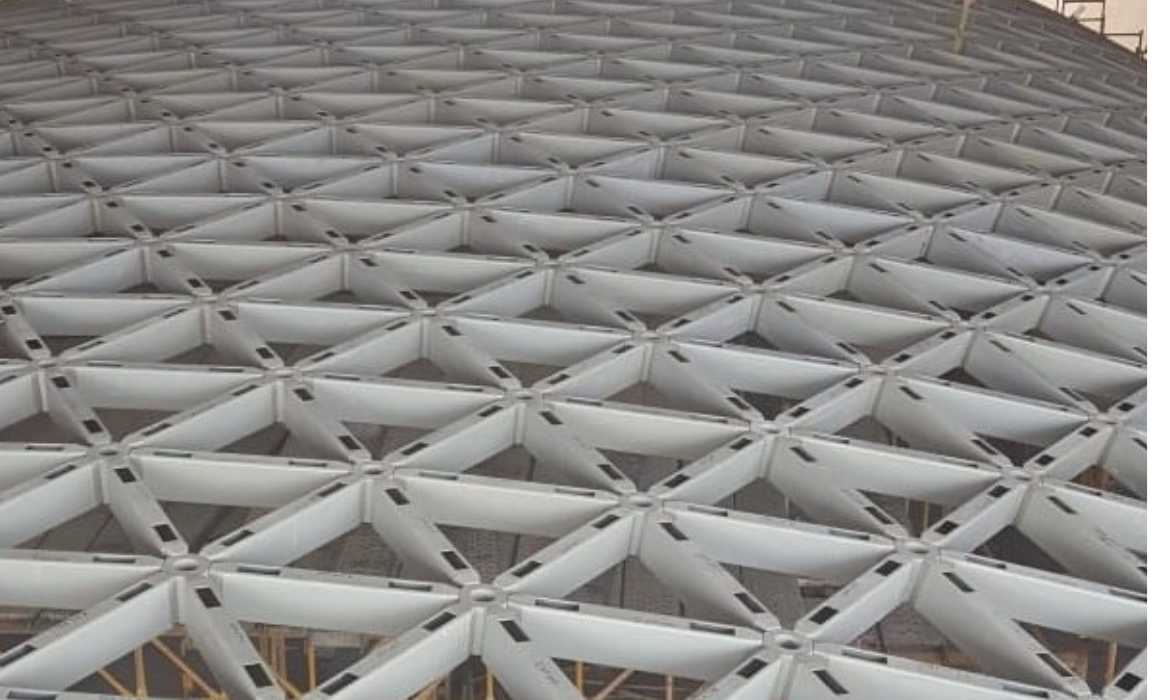

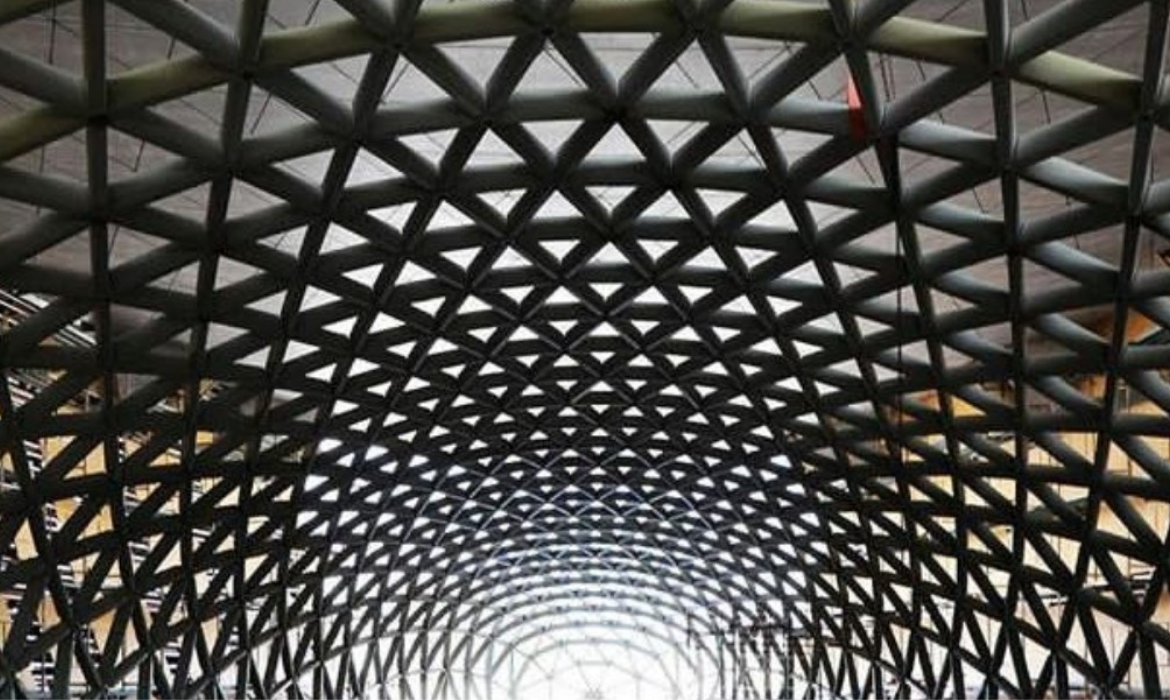

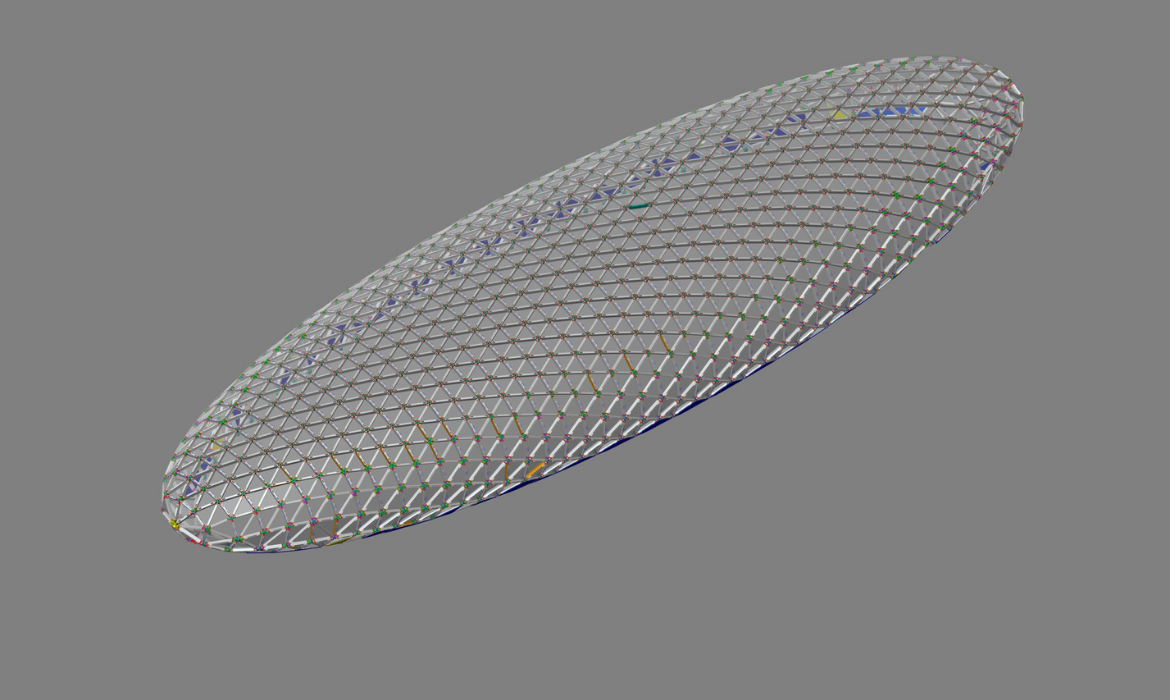

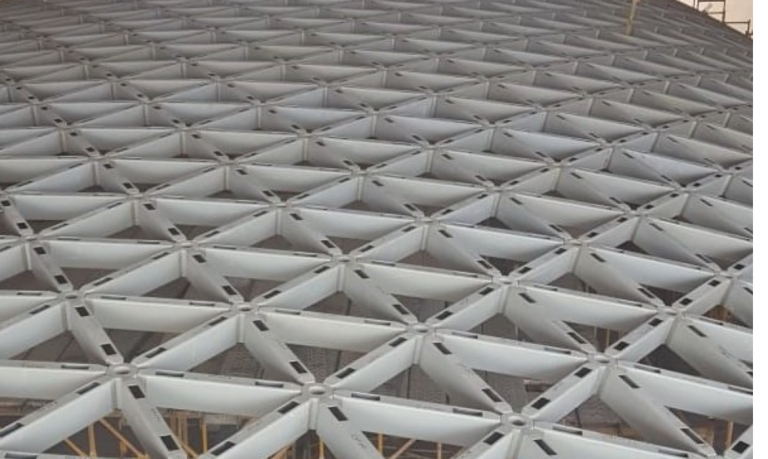

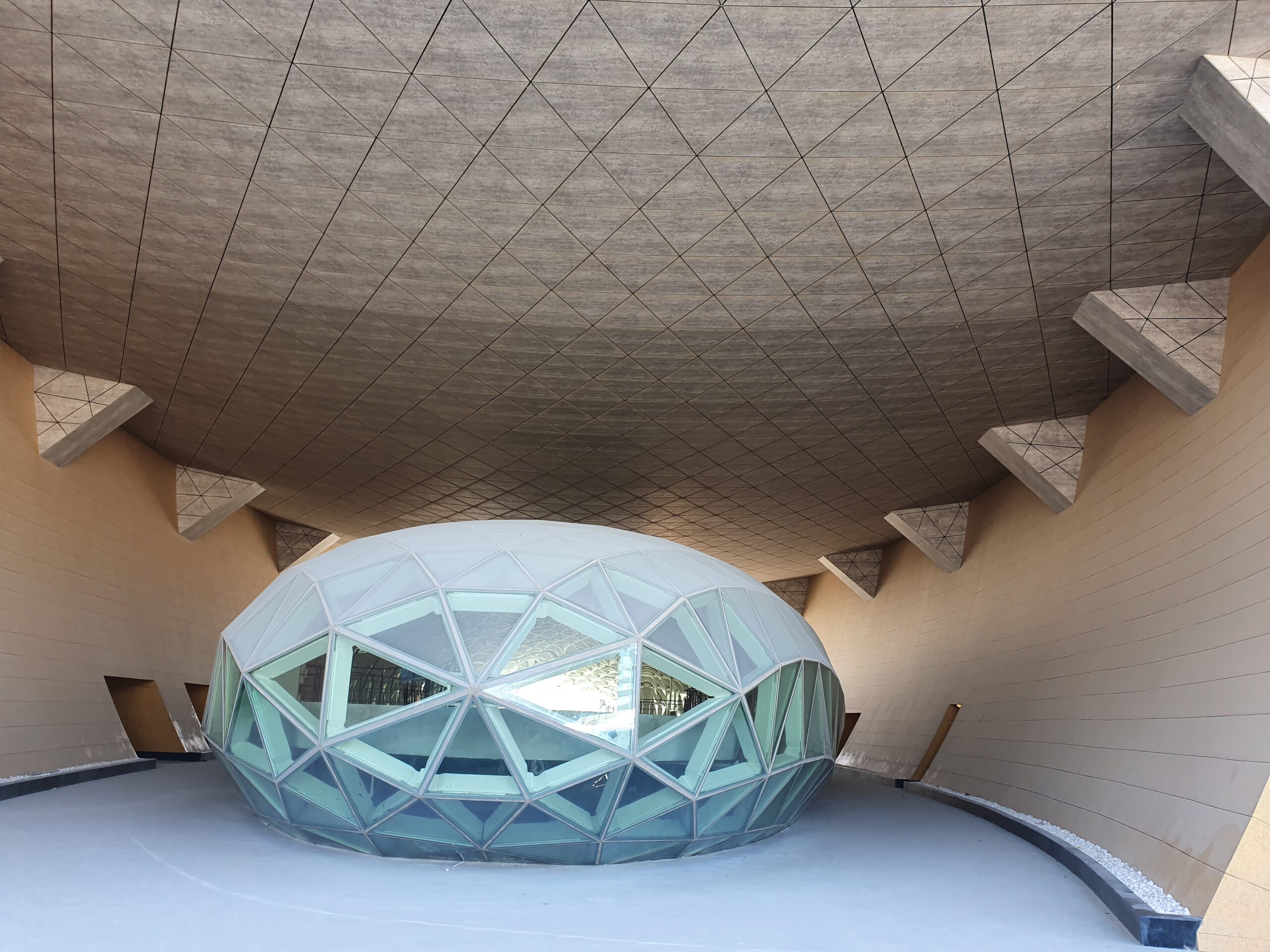

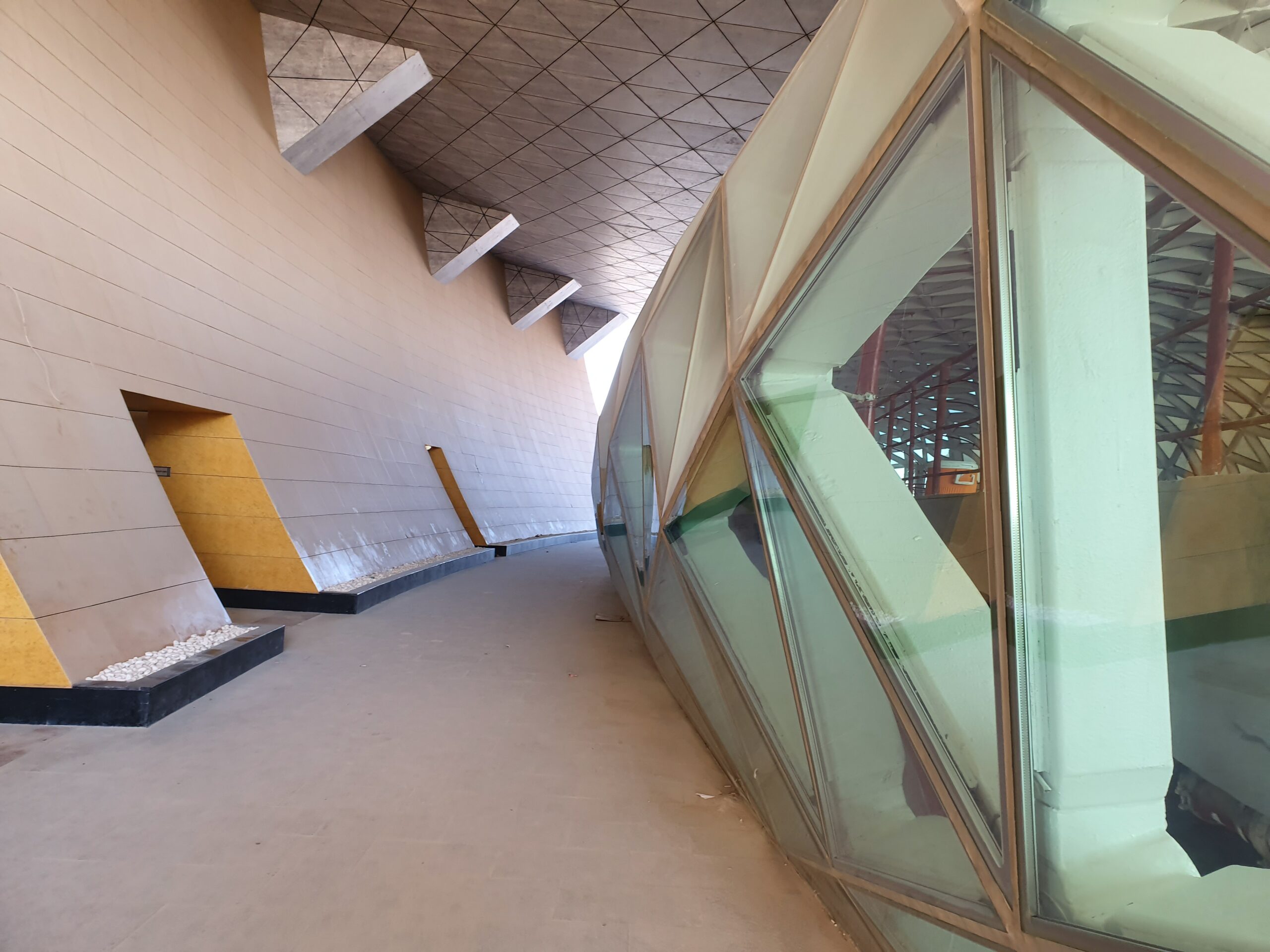

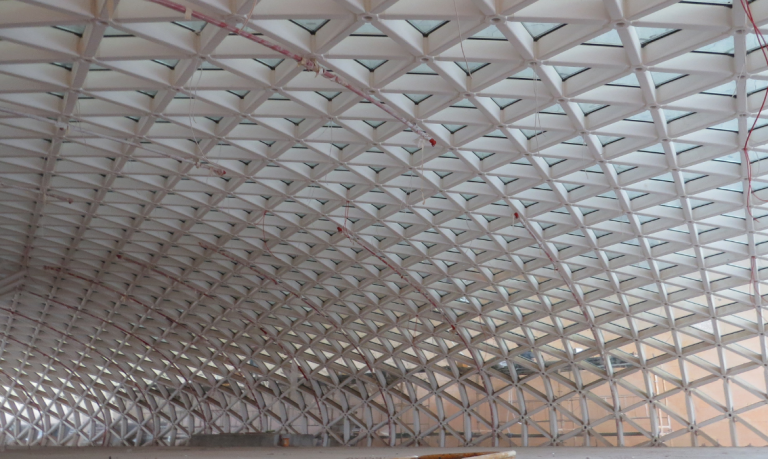

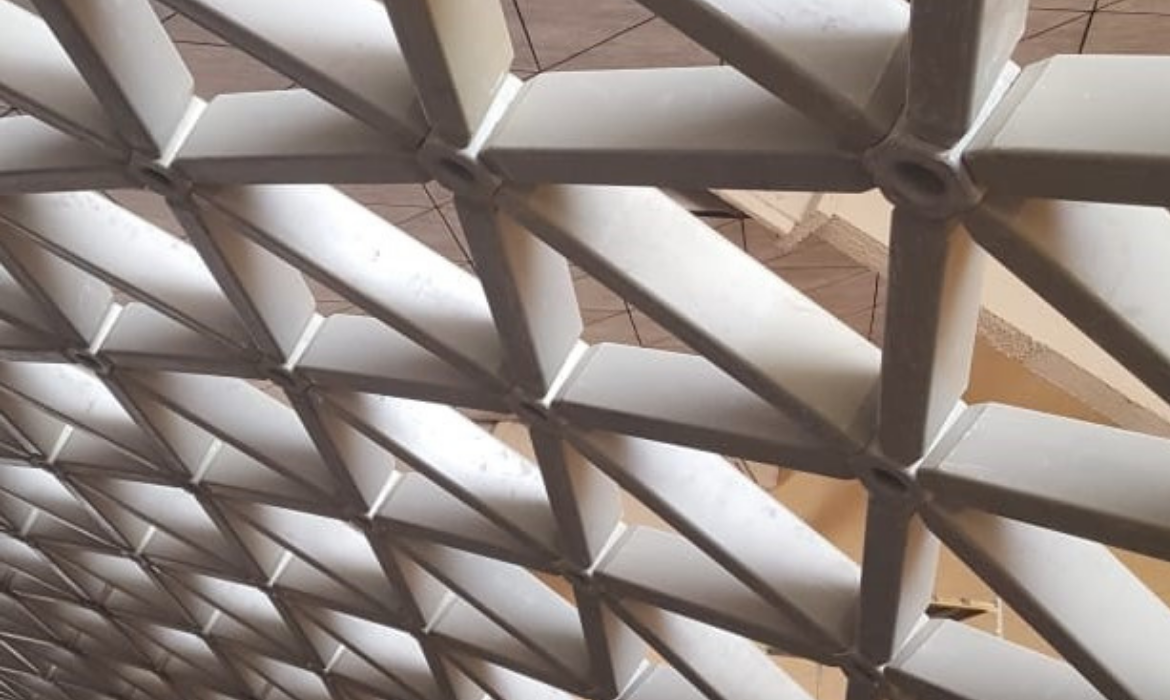

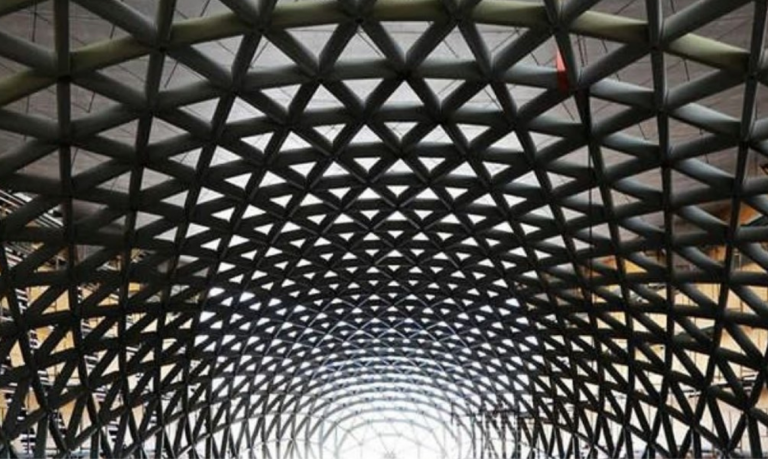

They named Cocoon as that what its shape resembled. It is a unique single-layer structure spanning 100 meters by 27 meters without columns. There are two identical structures, one in each sector of Energy City, that divide the twin buildings. The structures are glazed with triangulated IGU panels.
The cocoons are used as VIP areas of the commercial complex of Al Mansour Gate, covering two floors in height.
