Elliptic Facade

single layer system

Project Name

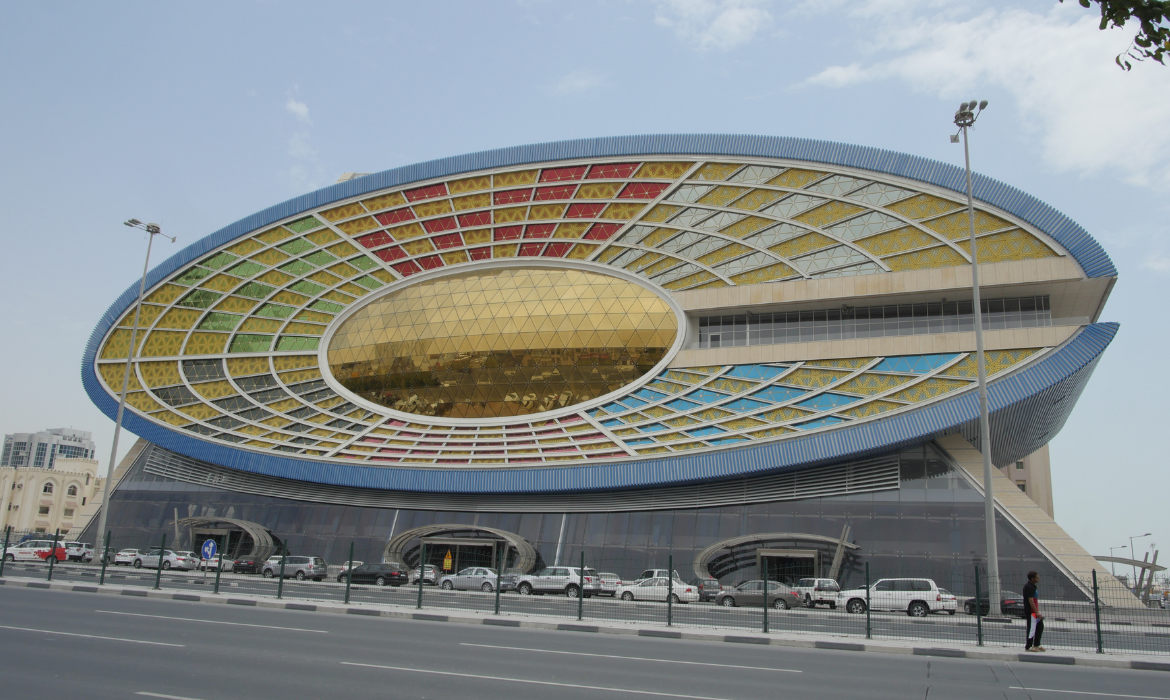

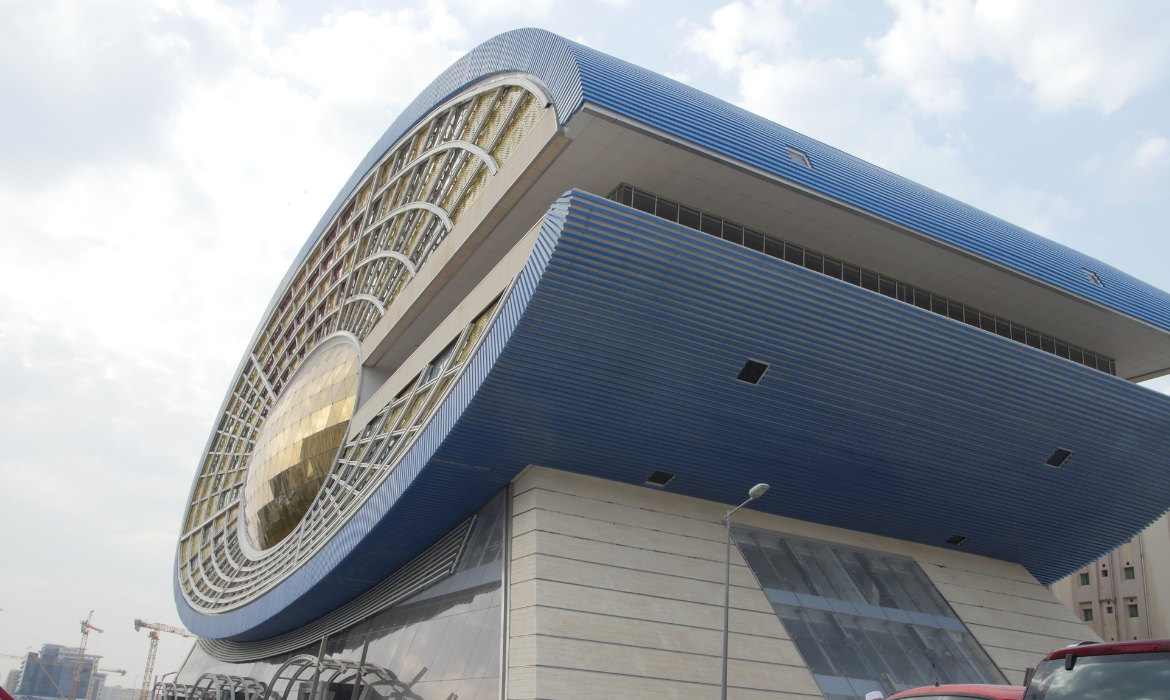

The Eye of Qatar

Use

Commercial building

Build Up Area

55000 Mtr2

Levels

2B+GF+M+7

Unique Members

5415 nos.

Unique Nodes

1828 nos.

Unique Panels

3100 nos.
HEXANOM STRUCTURE 3436 Mtr2

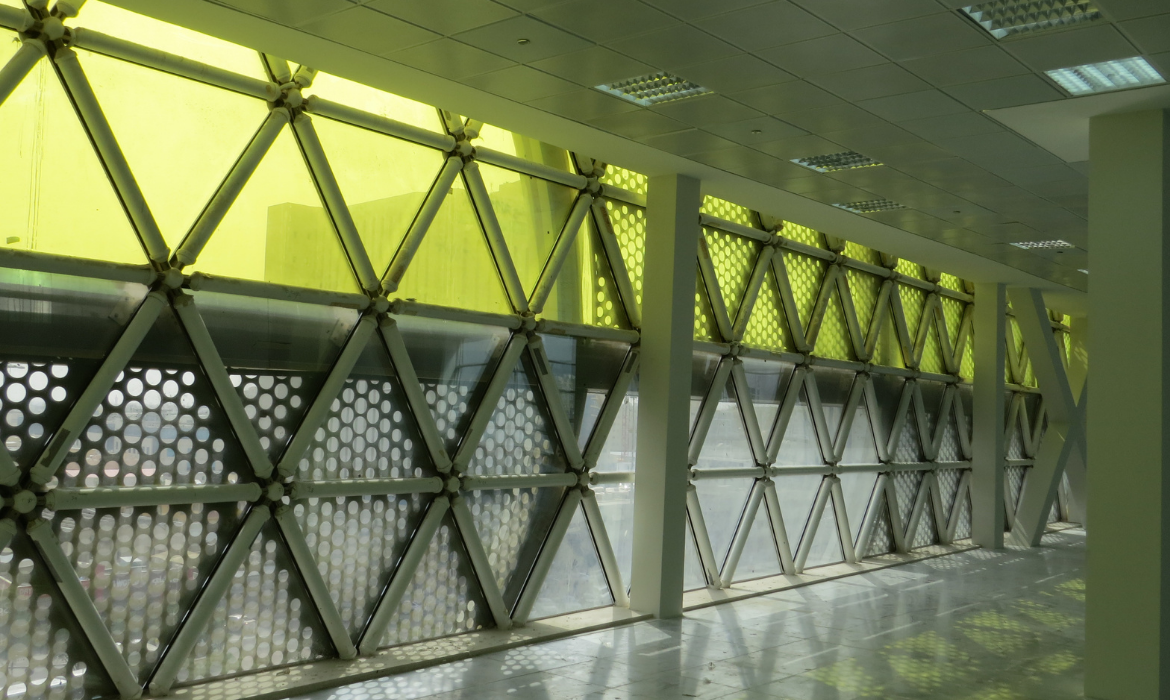

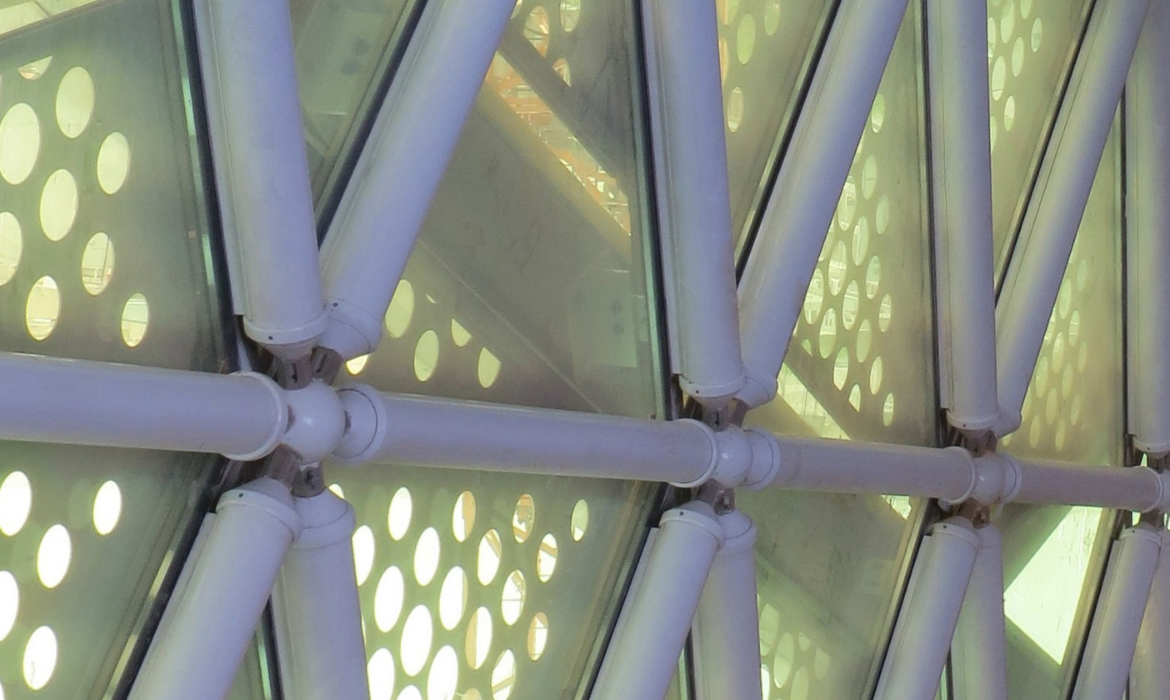

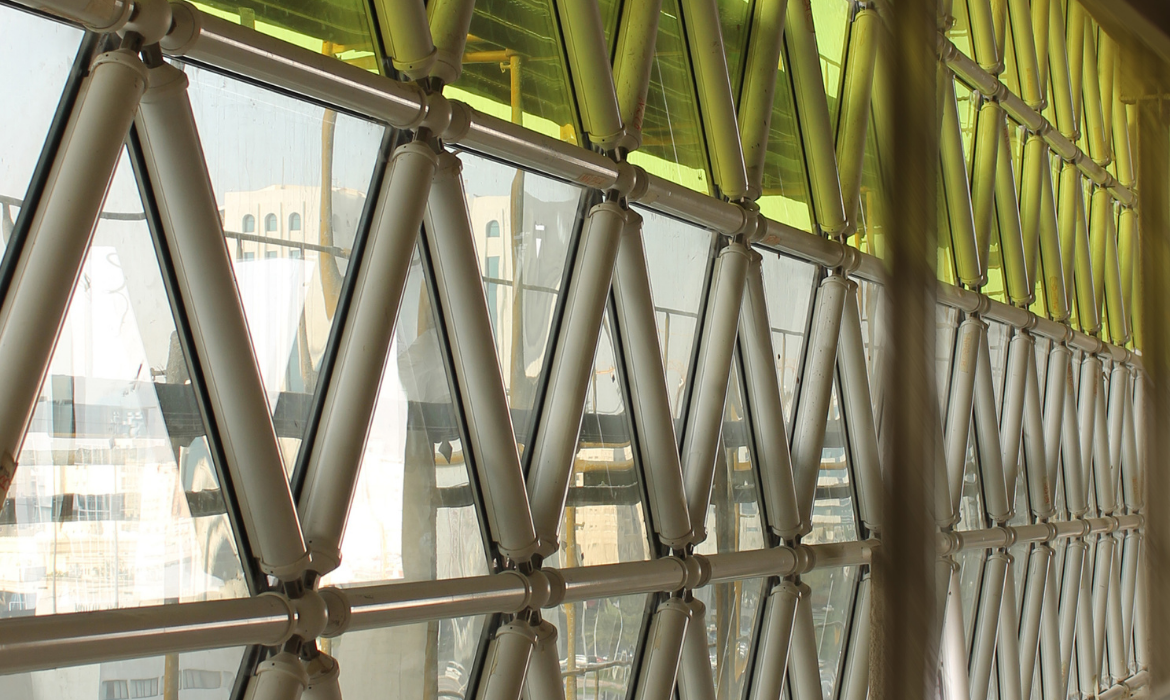

This unique facade is designed and constructed as a single-layer structure from spheres and circular hollow sections. It is an elliptic/double curvature skin that carries glass units, a Shading system with perforated aluminum sheets, and decorative box-shaped aluminum members.
All the members and glazing are unique in dimension and shape. They were processed directly from the designed model and matched perfectly on erection.
